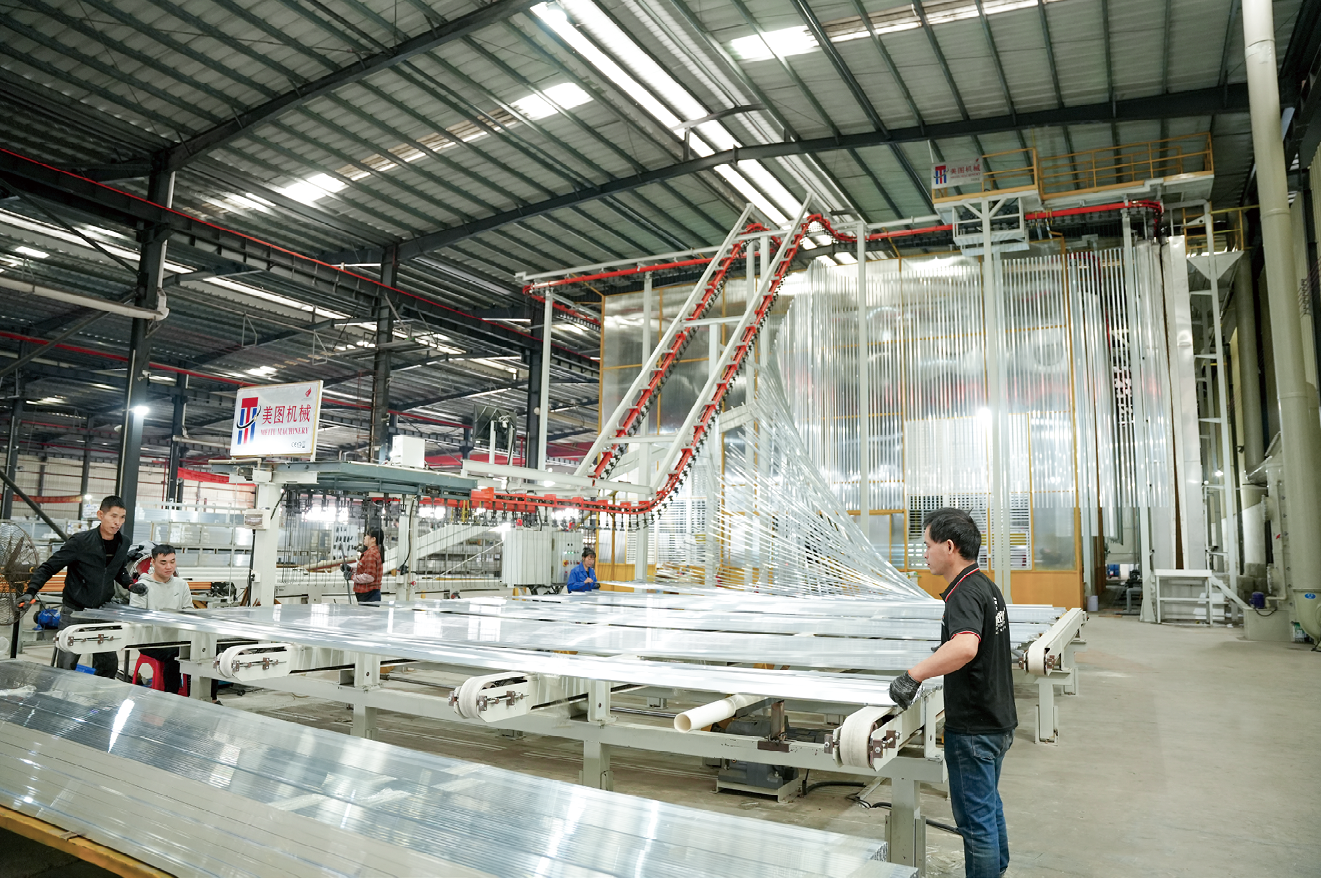

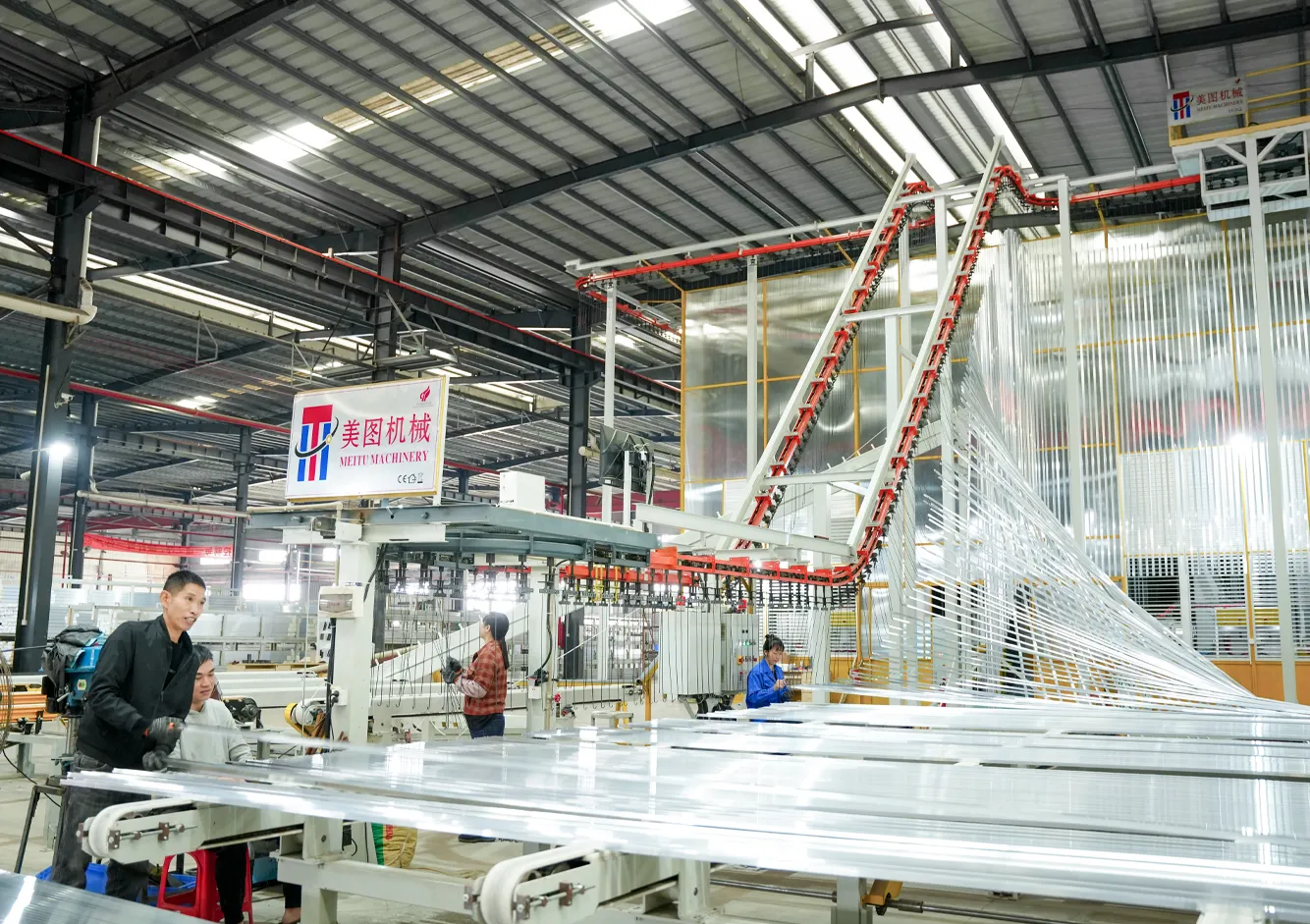

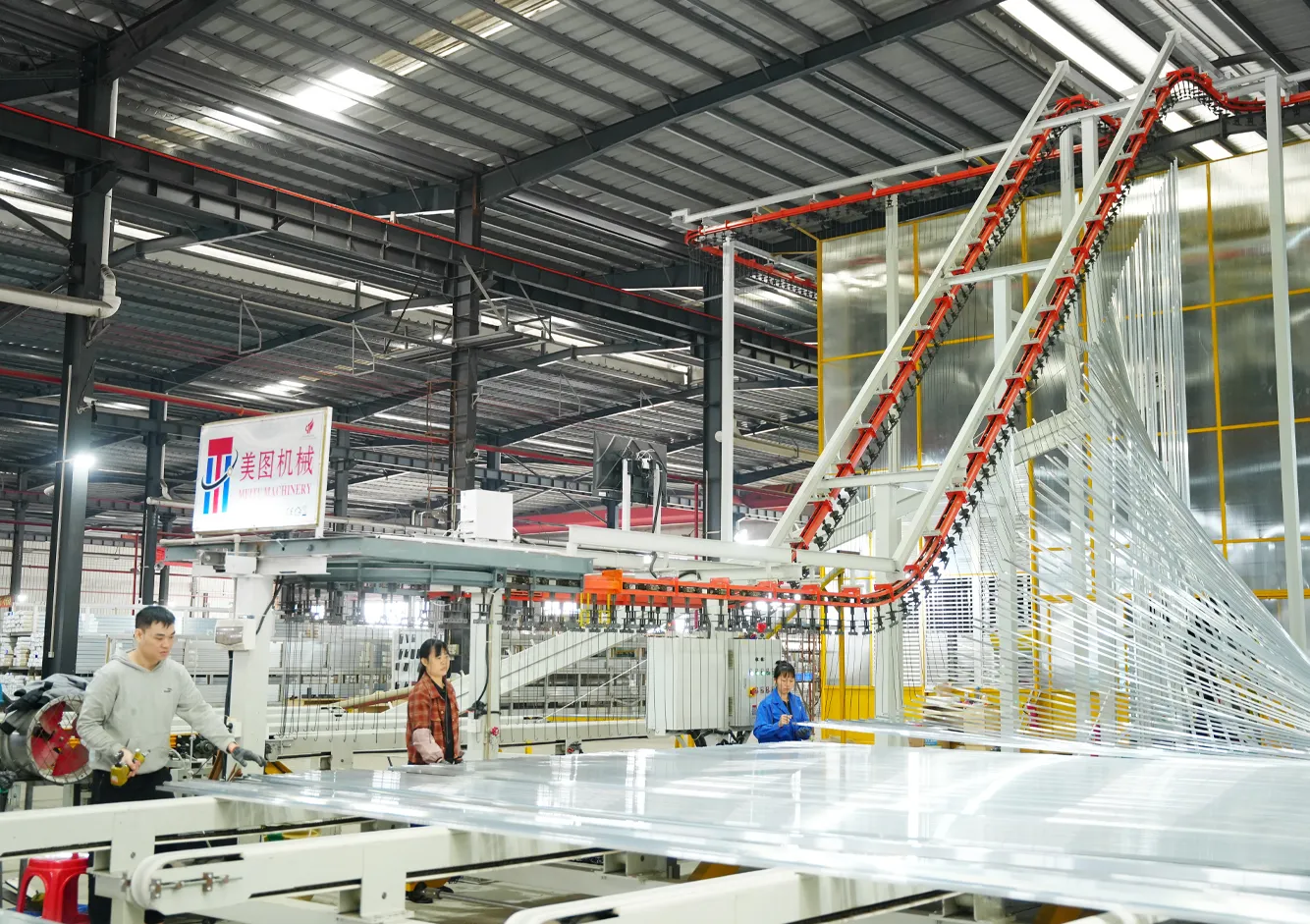

The Loading and Unloading Rack System is an essential component in modern powder coating and liquid painting production lines, designed to ensure safe, stable, and efficient handling of workpieces throughout the manufacturing process. Engineered with industrial-grade materials and a high-strength structural framework, the system significantly increases operational efficiency, reduces manual labor intensity, and prevents damage to workpieces during loading and unloading cycles.

—

Constructed from carbon steel or stainless steel, the rack features advanced welding technology and reinforced load-bearing arms. This ensures that the system can support a wide range of workpiece weights—from lightweight sheet metal parts to heavy steel structures—without deformation or instability. The anti-corrosion coating on the rack further enhances its durability, making it suitable for harsh industrial environments, including chemical pretreatment areas, powder booths, curing ovens, and storage zones.

—

One of the defining features of the Loading and Unloading Rack System is its modular and adjustable design. Each frame can be configured with adjustable hooks, crossbars, hanger rods, and modular brackets to accommodate different shapes, sizes, and geometries of workpieces. Whether the product is small hardware, long aluminum profiles, metal frames, cabinets, or automotive parts, the system ensures secure positioning and balanced weight distribution.

—

The ergonomic design of the rack reduces operator fatigue by enabling smooth, low-resistance movement during loading or unloading. Wheels with high-temperature resistance can be added for mobility, allowing the racks to be used across various stations such as pretreatment, drying, powder spraying, curing, inspection, and packaging. Options include standard wheels, high-heat wheels, anti-static wheels, and locking casters depending on the production environment.

—

For factories with high automation demands, the rack system can integrate seamlessly with overhead conveyors, power & free conveyors, chain-driven systems, and manual push-track lines. When paired with smart tracking conveyor systems, the rack can be used in continuous high-output coating lines, enabling a fully synchronized workflow that increases productivity and eliminates production bottlenecks.

—

To ensure maximum operational safety, each rack undergoes load-bearing testing before shipment. Operators can choose from U-shaped hooks, V-shaped arms, multi-layer bars, and detachable brackets, all engineered for secure clamping and long-term durability. Optional insulating sleeves or heat-resistant coatings can be applied based on the temperature requirements of curing ovens or drying zones.

—

Integrated Advantages & Features (Combined + Expanded)

The Loading & Unloading Rack System incorporates all industry-leading features, including high load capacity, corrosion-resistant surface treatment, ergonomic design, modular adjustability, and compatibility with automation equipment. Precision welding enhances structural integrity, while anti-slip fixtures protect delicate parts. Its versatility supports repeated use across multiple production shifts with minimal maintenance.

—

Product Selling Points — English

• Heavy-duty construction for industrial use

• Adjustable modular design for all workpiece sizes

• Compatible with manual and automated coating lines

• Corrosion-resistant surface treatment

• Reinforced structure prevents deformation

• Custom hooks, brackets, rods, and bars available

• Optional mobility wheels for flexible movement

• Stable loading platform reduces risk of damage

• High safety and ergonomic design

• Suitable for powder coating, liquid painting, pretreatment, and curing lines

—

FAQ — English

Q1: What materials are available for the rack?
A: Carbon steel, stainless steel, and aluminum alloy depending on the application.

Q2: Can the rack support heavy workpieces?
A: Yes, the reinforced frame is designed for high load capacity and heavy components.

Q3: Are the hooks and brackets adjustable?
A: All hanging accessories can be customized for size, spacing, and load requirements.

Q4: Can the rack be integrated with automation systems?
A: Yes, it supports overhead conveyor systems, power & free conveyors, and manual track lines.

Q5: What optional features are available?
A: Anti-static wheels, heat-resistant coatings, locking casters, adjustable arms, and multi-layer rods.
