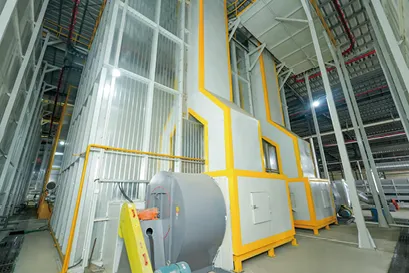

A curing oven is an essential component of any powder coating line, responsible for delivering uniform heat energy to cure powder-coated surfaces and transform the applied powder into a durable, smooth, and protective film. Built for demanding industrial environments, a curing oven ensures stable temperature distribution, rapid heat-up time, and energy-efficient operation. Its performance directly influences surface adhesion, gloss uniformity, scratch resistance, and overall coating quality.

Modern curing ovens are engineered to meet the needs of a wide range of industries, including automotive parts, home appliances, construction materials, metal fabrication, furniture, machinery frames, and electrical enclosures. Their versatility, reliability, and precision make them a critical part of any high-quality finishing operation.

—

2. Working Principle

After powder is electrostatically applied to a substrate, the coated part enters the curing oven. Inside the heated chamber, the powder melts, flows, levels, and chemically crosslinks to form a tough, continuous polymer layer.

The curing process typically involves:

1. Preheat & Ramp-Up Stage – The oven increases temperature to the required curing range.

2. Gel Stage – Powder melts and begins to gel on the surface.

3. Flow & Leveling Stage – The molten powder smooths and spreads evenly.

4. Crosslinking Stage – Heat triggers the final chemical reaction that forms a solid polymer film.

Precision temperature control ensures the coating achieves its optimal mechanical strength, corrosion resistance, and weather durability.

—

3. Structural Features

A modern curing oven integrates several engineering elements to ensure consistent performance:

3.1 Double-Layer Insulated Panel Construction

The chamber walls are built with high-density insulation designed to reduce heat loss, improve energy efficiency, and maintain stable internal temperatures.

3.2 High-Performance Heating System

Depending on configuration, the oven may use:

• Electric heating elements

• Gas burners

• Diesel burners

• Hybrid heating systems

Each option delivers uniform thermal distribution and quick response to temperature changes.

3.3 Efficient Air Circulation Design

The airflow system uses strategically placed circulation fans and air ducts to ensure even heat distribution across the entire chamber. No cold zones or overheating spots exist within the flow pattern.

3.4 Intelligent Temperature Controller

The digital controller monitors real-time oven temperature, adjusts heating output, and ensures consistent curing for all part shapes and thicknesses.

3.5 Modular Sections for Custom Length

Curing ovens can be extended or shortened to suit production demands. Conveyor integration allows continuous processing.

—

4. Key Advantages & Features

4.1 Rapid Heat-Up and Stable Temperature Control

Advanced heating elements and circulation systems drastically reduce warm-up time while keeping the curing temperature within tight tolerance ranges.

4.2 Energy-Saving Design

Double-layer insulation, optimized ducting, and controlled burner output significantly reduce energy consumption.

4.3 Uniform Airflow Distribution

Strategic aerodynamic design ensures each part receives consistent heat exposure regardless of size or placement.

4.4 High Durability & Long Service Life

High-temperature-resistant components and industrial-grade chassis construction guarantee reliable long-term use.

4.5 Safety Protection System

Includes:

• Over-temperature alarms

• Emergency shut-off

• Flame detection (gas/diesel type)

• Electrical overload protection

4.6 Easy Maintenance

Accessible inspection doors and modular components allow quick replacement and repair with minimal downtime.

—

5. Application Scenarios

The curing oven is designed to meet diverse manufacturing needs and is widely used in:

• Powder-coated metal parts

• Automotive accessories

• Construction materials

• Electrical cabinets

• Household appliances

• Agricultural machinery

• Industrial machinery frames

• Pipe components

• Furniture and hardware

• Rail transit components

—

6. Temperature Range & Compatibility

Typical curing ovens operate in the range of 160°C to 220°C, adjustable to match powder specifications. They support:

• Polyester powders

• Epoxy powders

• Hybrid powders

• High-heat-resistant powders

• Low-temperature powders

• Special outdoor performance coatings

—

7. Conveyor System Integration

Curing ovens can be integrated with:

• Continuous overhead conveyors

• Ground conveyors

• Chain-drive conveyors

• Power-and-free conveyor lines

These combinations support seamless automation and high-output processing.

—

8. Safety & Operational Stability

Industrial curing ovens include multiple layers of protection:

• Redundant thermal sensors

• Fire-resistant insulation

• Flame safety systems (for burner models)

• Structural reinforcements

• Emergency stop switches

This ensures safe and steady operation in 24/7 production environments.

—

9. Selling Points Summary

• Highly uniform temperature distribution

• Efficient airflow and heat circulation

• High-density insulation for energy savings

• Stable curing performance for consistent coating quality

• Fast heat-up time

• Compatible with a wide range of powder types

• Intelligent temperature controller

• Safe and reliable continuous operation

• Customizable for various line sizes

• Extremely durable industrial build

—

10. FAQ

Q1: What is the typical curing time for powder coating?
Generally 10–20 minutes, depending on powder specification and part thickness.

Q2: How accurate is the temperature control?
Temperature deviation is controlled within ±2°C for optimal curing.

Q3: Can the oven be customized for size and power?
Yes, length, heating capacity, and airflow can all be customized.

Q4: What heating methods are available?
Electric, gas, diesel, and hybrid options are supported.

Q5: Does the oven require frequent maintenance?
Only periodic inspections of fans, bearings, and heating elements.

Q6: Can it be integrated with an automated coating line?
Yes. The oven supports all major conveyor system types.

Q7: What materials can be cured?
Any powder-coated metal object, including steel, aluminum, and cast iron.
